7 Sheet Metal Fabrication Techniques in Modern Manufacturing

Discover the 7 core sheet metal fabrication techniques —— form the backbone of modern manufacturing, covering the full workflow from blanking and forming to joining and surface finishing. It examines the working principles, typical use cases, and cost-performance advantages of laser cutting, punching, bending, deep drawing, welding, mechanical fastening, and surface treatment. Learn how mastering these foundational techniques and implementing robust Design for Manufacturing (DFM) principles can help engineers and overseas B2B buyers optimize production costs, control tight tolerances, minimize material deformation, and accelerate supply chain efficiency.

The Core Process Framework of Modern Sheet Metal Fabrication

Sheet metal fabrication stands as one of the most adaptable manufacturing processes across industrial sectors, powering everything from server enclosures and EV battery housings to architectural facades and aerospace panels. Modern sheet metal production follows a standardized end-to-end workflow built on seven core techniques, spanning blanking, forming, joining and final finishing. Understanding this process chain enables design engineers to optimize part geometry, shorten lead times and reduce costs for both custom low-volume prototypes and high-volume mass production runs.

Laser Cutting: The Precision Blanking Foundation for Custom Sheet Metal Parts

As the dominant blanking method in contemporary job shops, laser cutting delivers unmatched dimensional accuracy for complex two-dimensional profiles. By focusing a high-power laser beam through a CNC-controlled cutting head, the process melts or vaporizes material with an extremely narrow heat-affected zone, producing clean, nearly burr-free edges on steel, stainless steel, aluminum and even copper up to 25mm thick. For low-volume custom projects, laser cutting eliminates upfront tooling costs that make small batches uneconomical with stamping. It handles intricate cutouts, tight-radius holes and irregular contours impractical with traditional punching, making it the universal first step for most custom sheet metal work.

Punching: High-Efficiency Piercing and Forming for Batch Production

For medium to high-volume orders, punching delivers faster cycle times and lower per-unit costs than laser cutting for repetitive features. Equipped with rotating turrets holding dozens of standardized tool shapes, punch presses create holes, slots, louvers, countersinks and simple formed features such as embosses and stiffening ribs in a single machine cycle. The process excels at parts with uniform hole patterns, such as ventilation grilles and electrical cabinet panels. When paired with advanced nesting software, punching maximizes sheet utilization, cutting material waste and overall production expenses for large-quantity orders.

Bending: The Dominant Process for 3D Sheet Metal Shaping

Press brake bending is the transformative process that turns flat blanks into three-dimensional functional parts, serving as the backbone of all sheet metal forming operations. Modern CNC press brakes use precision backgauges and real-time angle measurement systems to deliver consistent bend angles, even across varying material thicknesses and grain directions. Experienced operators account for springback — the inherent tendency of metal to rebound slightly after bending — by over-bending by a calculated degree. From simple 90-degree mounting brackets to complex multi-bend equipment enclosures, this technique produces the structural shapes used in nearly every sheet metal assembly.

Stamping & Deep Drawing: Shaping Complex Geometries with Hard Tooling

For highly complex, contoured, or seamless three-dimensional geometries, standard press brake bending falls short. Manufacturing plants instead turn to Stamping and Deep Drawing.

Stamping utilizes heavy-tonnage hydraulic or mechanical presses equipped with custom-engineered hard tooling (dies) to shape, blank, or emboss sheets in a single stroke. When the depth of the part exceeds its radial dimension—such as in automotive oil pans or specialized fluid containers—Deep Drawing is employed. The sheet is progressively radial-drawn into a forming die by a mechanical punch. While the initial tooling costs are high, the unit cost drops drastically for mass-production runs, making it a staple for industrial-scale supply chains.

Welding: Achieving Seamless Structural Strength

Once individual panels are cut and formed, they must be fused into a unified assembly. The choice of welding technique depends heavily on the material properties, aesthetic demands, and the final operating environment of the product.

• TIG Welding (Tungsten Inert Gas): Offers ultimate precision and exceptionally clean welds. It is the gold standard for thin stainless steel and aluminum parts used in medical devices, where seamless, grinded, and polished joints are mandatory for sanitization.
• MIG Welding (Metal Inert Gas): Known for its high deposition rate and speed, making it ideal for structural frames and thicker industrial brackets.
• Laser Welding: The cutting-edge choice for high-end production, offering ultra-fast welding speeds with virtually zero thermal deformation.

Surface Finishing: Enhancing Aesthetics and Corrosion Resistance

The final core technique, surface finishing, transforms raw fabricated parts into finished end products by boosting corrosion resistance, wear durability and visual quality. A fabrication process isn't truly complete until the raw metal is protected against environmental degradation. The choice of finish depends on both function and form.

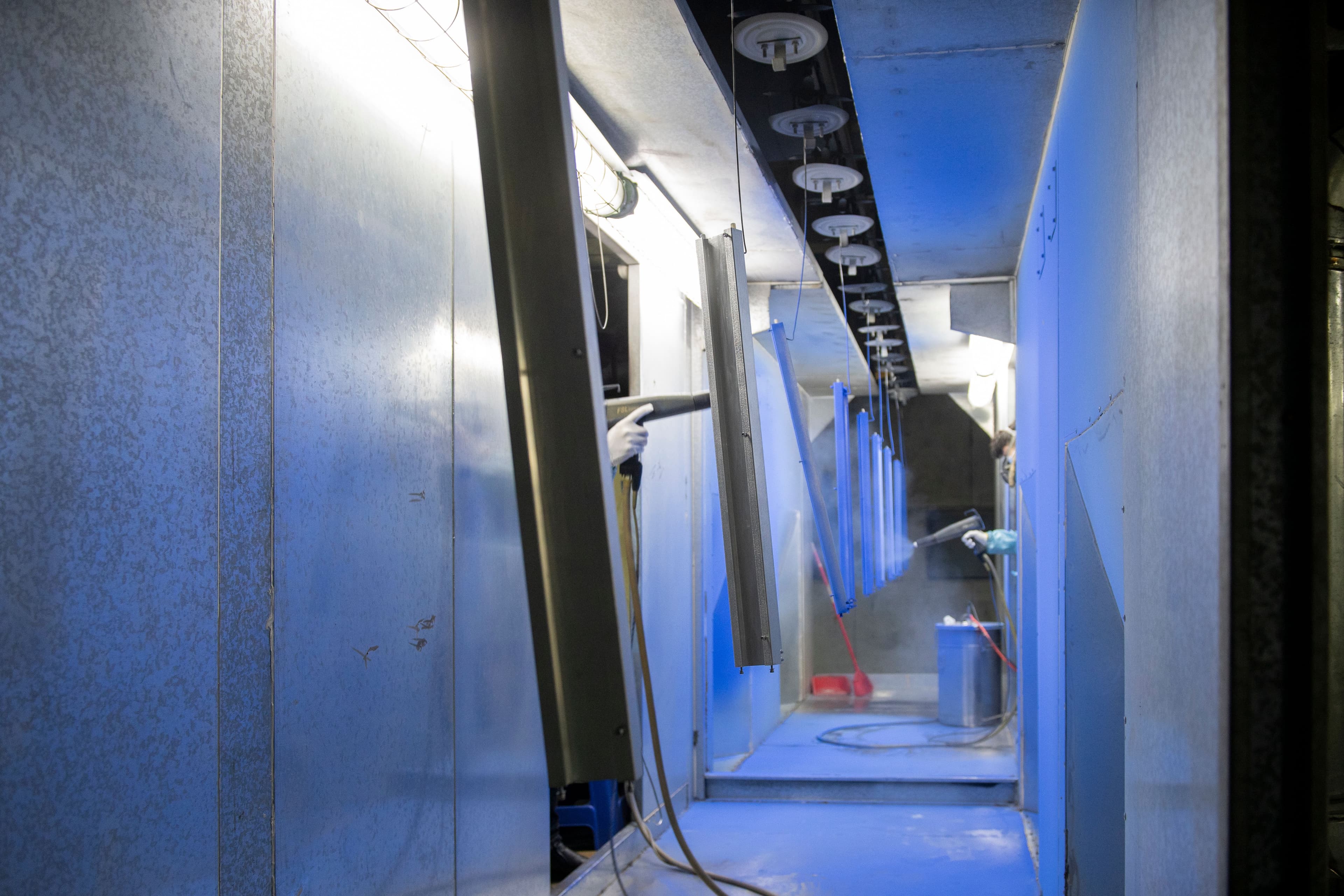

• Powder Coating: The industry standard for industrial enclosures. Electrostatically applied powder is baked in an oven to form a thick, durable, scratch-resistant barrier.
• Anodizing: Used exclusively for aluminum components, altering the surface structure to increase corrosion resistance and allow for vibrant, metallic color dyeing.
• Passivation & Plating: Essential for stainless steel and carbon steel parts (like zinc plating or eco-friendly trivalent chromate) to prevent rust while maintaining electrical conductivity.

Assembly & DFM Inspection: Bringing It All Together

The final gatekeeper of quality is the assembly and testing line. Here, hinges, gaskets, glass windows, and hardware are installed onto the finished sheet metal structures.

More importantly, it is the stage where DFM (Design for Manufacturing) validation pays off. Experienced engineers audit the final product against strict tolerances, checking for gap consistency, paint thickness, and alignment. A robust DFM approach in the early engineering stages ensures that all 7 core techniques work in harmony, preventing costly re-work and delivering a hardware product that fits seamlessly into the global market.

Conclusion

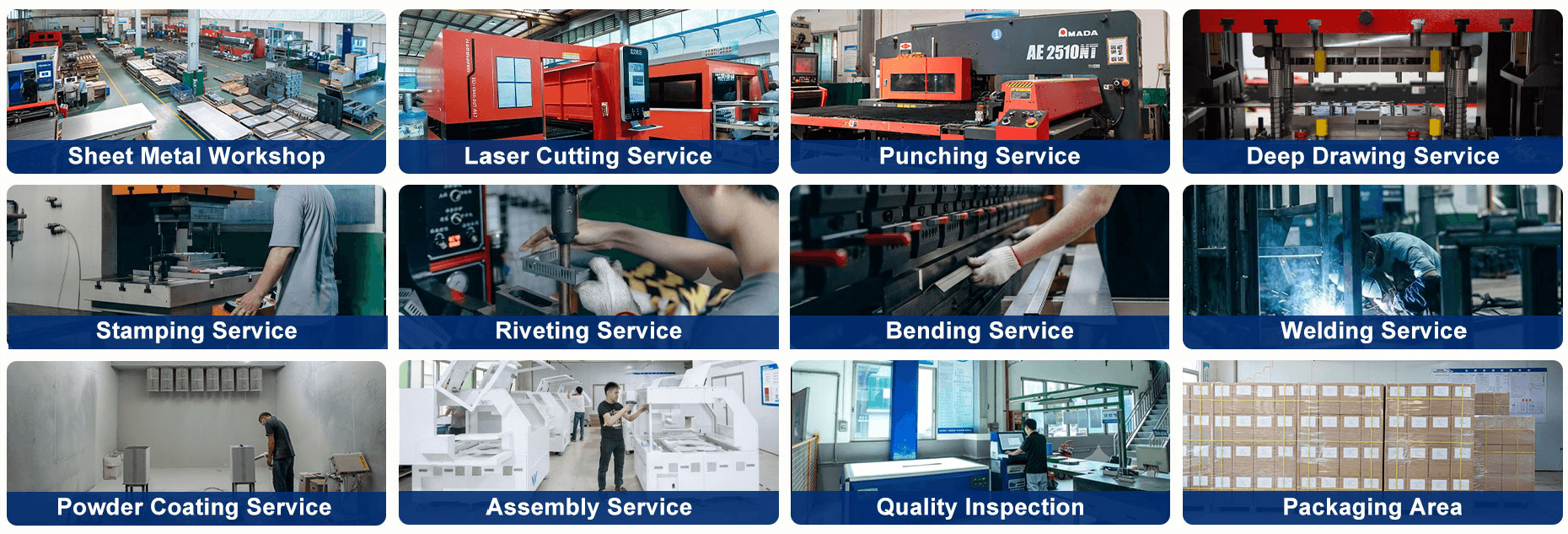

As a sheet metal manufacturer with 18 years of industry experience, a 30,000㎡ production facility and over 20+ sets of professional production equipment, LONGWANG integrates all seven core processes under one roof—from precision laser cutting and high-efficiency CNC punching to press brake bending, deep drawing, certified welding, mechanical fastening and comprehensive surface finishing. Unlike ordinary suppliers that only deliver semi-finished fabricated parts, we provide a complete one-stop solution covering DFM optimization, in-house assembly, functional testing and finished product packaging, helping clients reduce supplier management costs, shorten project lead times, and avoid quality discrepancies across multi-vendor chains.

Backed by ISO9001 and IATF16949 certifications, our full-process quality inspection system ensures strict compliance with dimensional tolerances and performance standards for every batch. We serve global customers across energy storage, EV charging, industrial control, medical equipment and other sectors, supporting both low-volume custom prototyping and high-volume mass production. Our engineering team also offers professional drawing review and process optimization services to help you translate design ideas into robust, ready-to-install sheet metal products.
